MEGA 100 FLEX | 100 Watt Flexible Solar Panel | Lightweight 12V Solar Panel for Vans, Boats, and Trailers | High Efficiency

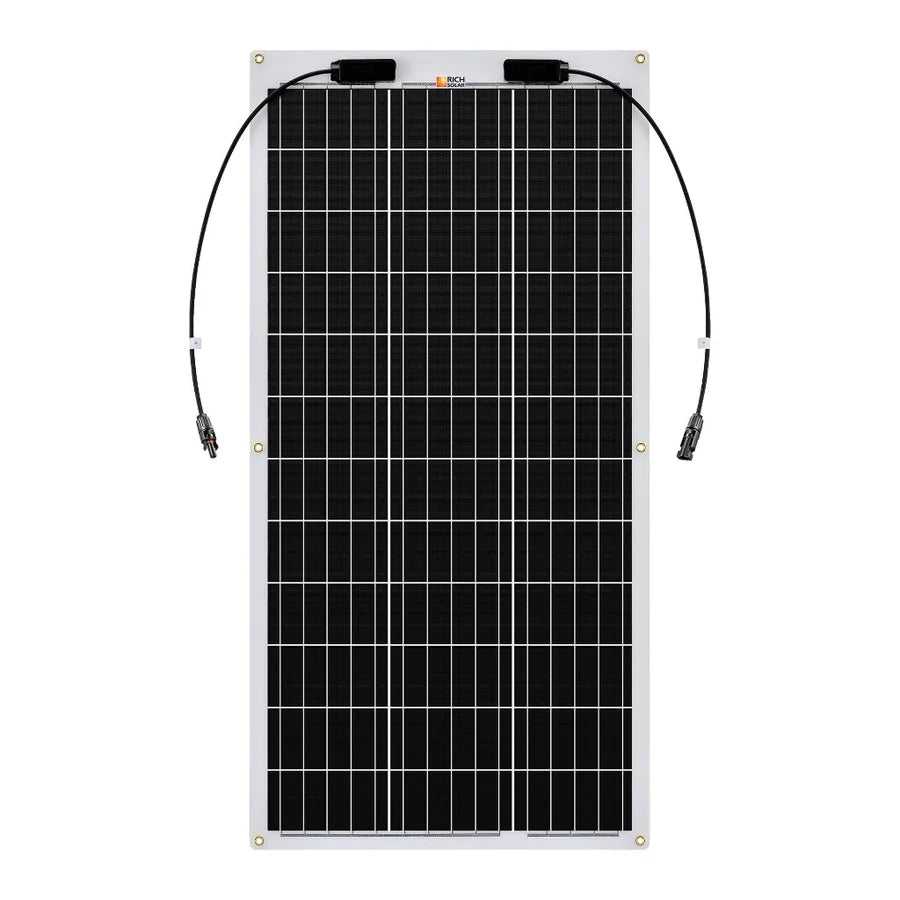

The MEGA 100 FLEX is a lightweight and durable 100W flexible monocrystalline solar panel designed for versatile off-grid use. Perfect for vans, RVs, trailers, boats, and curved surfaces, this panel combines high efficiency with easy installation. Weighing only 4.8 lb and just 0.1 inch thick, it can flex up to 30°, making it ideal for portable or irregular mounting locations.
Key Features
-
Lightweight: Only 4.8 lb for effortless installation
-
Ultra-thin Design: Just 0.1 inch thick
-

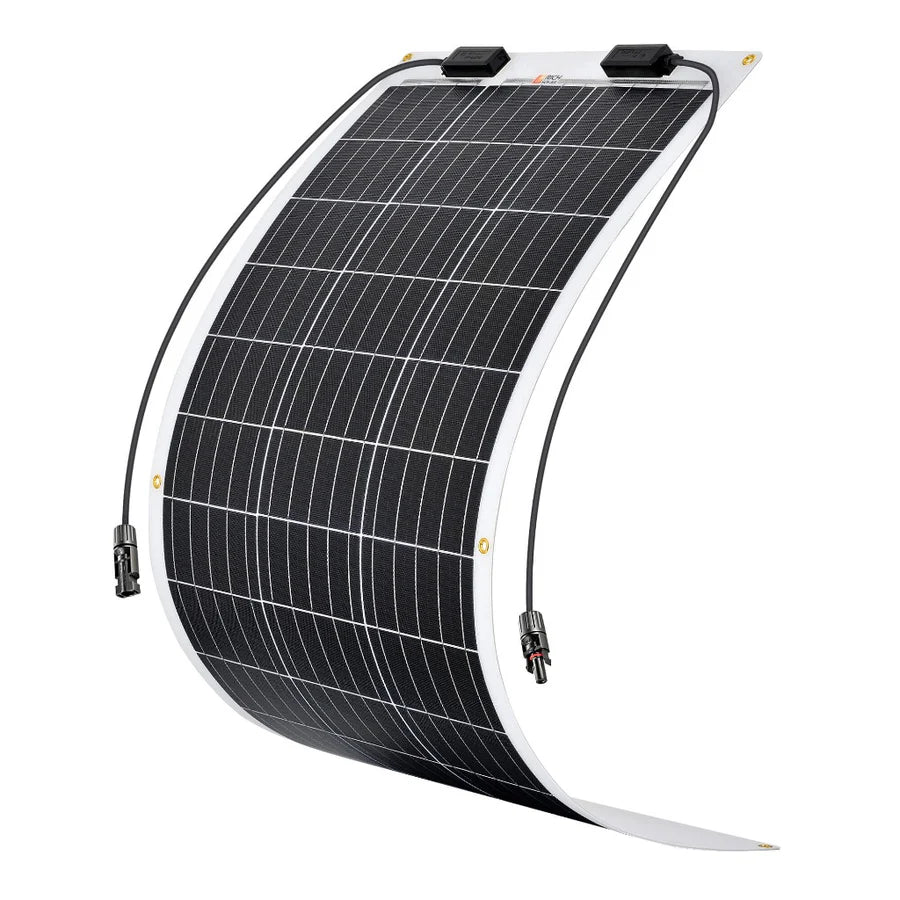

Flexible up to 30° — perfect for curved roofs or surfaces
-
Stainless steel grommets for secure mounting
-
Easy and low-cost installation with standard connectors
-
IP67 waterproof junction box and connectors for outdoor durability
-
Bypass diodes minimize power drop due to shading
-
Ideal for vans, boats, trailers, and backup power setups
-
Backed by a 1-year warranty
Specifications
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 100 W |
| Voltage at Max Power (Vmp) | 18.9 V |
| Current at Max Power (Imp) | 5.29 A |
| Open Circuit Voltage (Voc) | 22.8 V |
| Short Circuit Current (Isc) | 5.59 A |
| Maximum System Voltage | 1000 VDC |
| Temperature Range | -40°F ~ +185°F |
| Weight | 4.8 lb (2.2 kg) |
| Dimensions | 40.6 × 21.3 × 0.1 in (1,031 × 541 × 2.5 mm) |
| Flexibility | Up to 30° bend |
Built-In Components
-
RICH SOLAR 100W flexible monocrystalline panel
-
24-inch leads (pair) with waterproof IP67 solar connectors
-
IP67-rated junction box with built-in bypass diodes
Perfect For
-
Camper vans and RVs
-
Overlanding setups
-
Marine and boat use
-
Trailers and service vehicles
-
Curved roof installations
-
Outdoor or emergency power setups
