Premium 12V Off-Grid Power | 16-Busbar Monocrystalline Technology | UL Certified | 25-Year Output Warranty
The MEGA 220 Solar Panel is engineered to deliver reliable, high-output performance for RVs, cabins, and marine setups. Built with premium components and advanced solar cell technology, it provides exceptional energy yield and durability even in the harshest conditions.
Featuring 16-busbar monocrystalline solar cells and AR-coated tempered glass, this panel delivers 220W of reliable 12V power with excellent low-light performance and comprehensive environmental protection.
220W maximum power with 18.3V operating voltage delivers robust performance for demanding off-grid applications with 12.0A charging current.
16-busbar monocrystalline solar cell configuration improves efficiency, reduces power loss, and enhances overall system performance.
Certified to withstand 2400 Pa wind load, 5400 Pa snow load, and 35 mm hail impact at 97 km/h for reliable performance in harsh conditions.
220W maximum power with 18.3V operating voltage and 12.0A charging current provides robust performance for demanding off-grid applications and larger battery banks.
Excellent low-light performance ensures consistent power generation during cloudy weather, mornings, and evenings for reliable energy production.
16-busbar monocrystalline solar cell configuration reduces power loss and improves efficiency, while AR-coated tempered glass enhances sunlight absorption.
Built-in bypass diodes minimize power drop caused by shading, ensuring optimal performance in partially shaded conditions.
Lightweight, corrosion-resistant anodized aluminum frame and high-transmission tempered glass provide long-term durability and structural integrity.
Rigorously tested under UV exposure, thermal cycling, humidity freeze, and PID conditions for reliable performance in diverse environments.
220W maximum power with 18.3V operating voltage and 12.0A charging current delivers robust performance for demanding off-grid applications in RVs, cabins, and marine systems.
16-busbar monocrystalline solar cell configuration improves efficiency, reduces power loss, and enhances current collection with AR-coated tempered glass for maximum light absorption.
Certified to withstand 2400 Pa wind load, 5400 Pa snow load, and 35 mm hail impact at 97 km/h with -40°F to +185°F operating range for reliable performance in harsh conditions.
Plug-and-play junction box with 3 ft pre-attached quick-connect cables, pre-drilled mounting holes, and IP67-rated waterproof protection for simple, reliable installation.
UL certified with 25-year power output warranty and 10-year workmanship warranty, rigorously tested under UV, thermal cycling, humidity freeze, and PID conditions.
| Maximum Power (Pmax) | 220W |
| Voltage at Pmax (Vmp) | 18.3V |
| Current at Pmax (Imp) | 12.0A |
| Open Circuit Voltage (Voc) | 22.1V |
| Short Circuit Current (Isc) | 12.5A |
| Max System Voltage | 1500 VDC |
| Dimensions | 55.1 × 30.0 × 1.2 in |
| Weight | 23.7 lb |
| Frame Material | Anodized Aluminum |
| Glass Type | AR-Coated Tempered |
| Cell Technology | 16-Busbar Monocrystalline |
| Mounting | Pre-drilled Holes |
| Temperature Range | -40°F to +185°F |
| Wind Load | 2400 Pa |
| Snow Load | 5400 Pa |
| Hail Protection | 35 mm at 97 km/h |
| Junction Box | IP67 Rated |
| Connectors | IP67 Rated |
220W power provides ample energy for RVs and motorhomes, supporting appliances, lighting, charging, and comfort systems during extended off-grid travel.
Ideal for cabins and off-grid homes where reliable 220W power is needed for daily energy requirements, lighting, and essential appliances.
Corrosion-resistant construction and robust power output perfect for boats and marine systems, providing reliable energy for navigation, communication, and onboard systems.
Professional-grade construction and UL certification make it suitable for commercial vehicles, work trucks, and mobile business applications requiring reliable power.
Excellent for remote monitoring stations, communication equipment, and off-grid infrastructure where reliable 220W solar power is essential for continuous operation.
Robust 220W output and extreme environment durability make it ideal for backup power systems, emergency communications, and critical infrastructure applications.
Experience premium solar performance with the MEGA 220. Your high-output solution for RVs, cabins, boats, and demanding off-grid applications with 220W power, advanced 16-busbar technology, and professional-grade durability for reliable energy production.
220W high-performance output, advanced 16-busbar technology, and extreme environment durability — the premium solar solution for demanding off-grid applications.

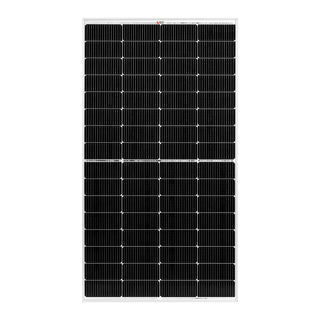

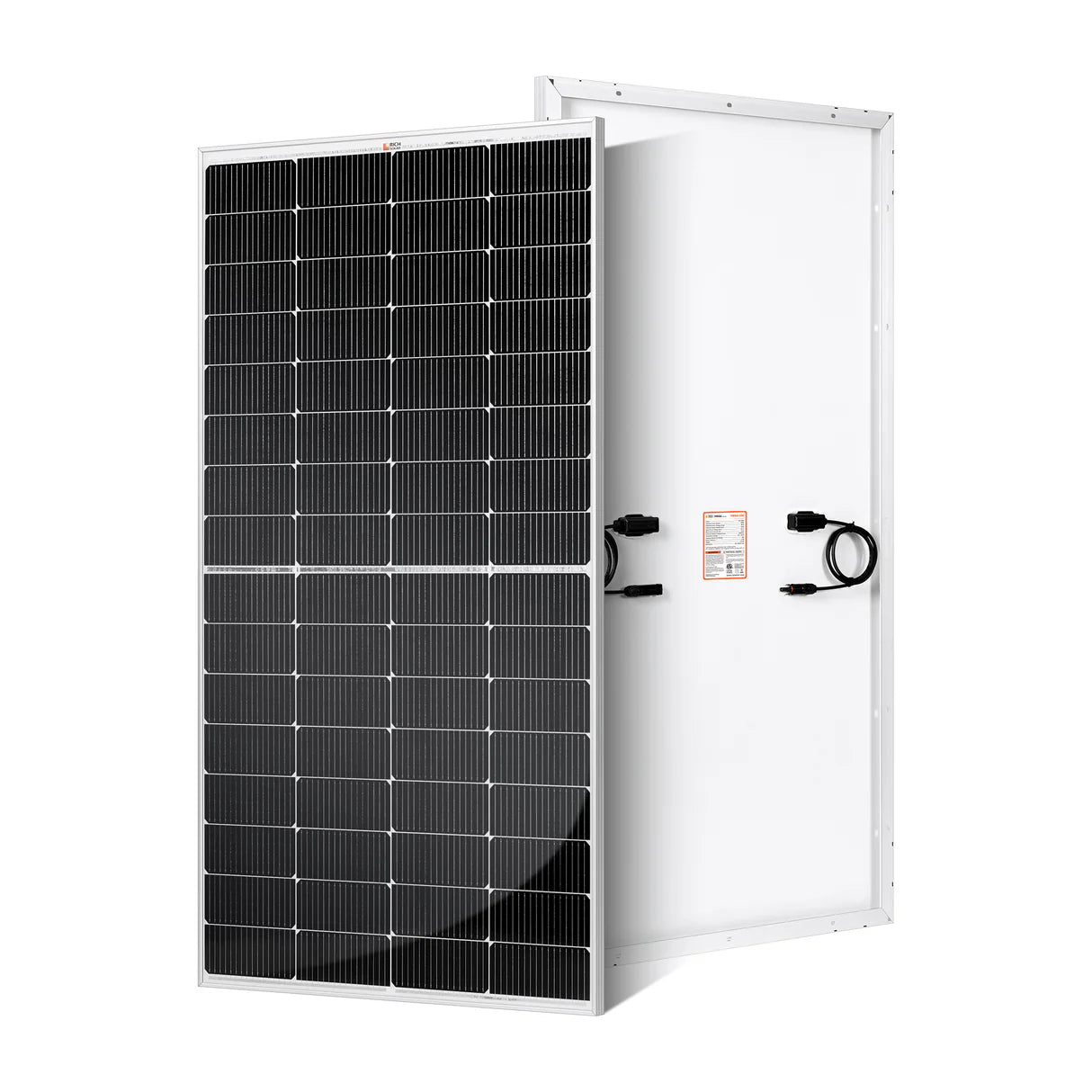

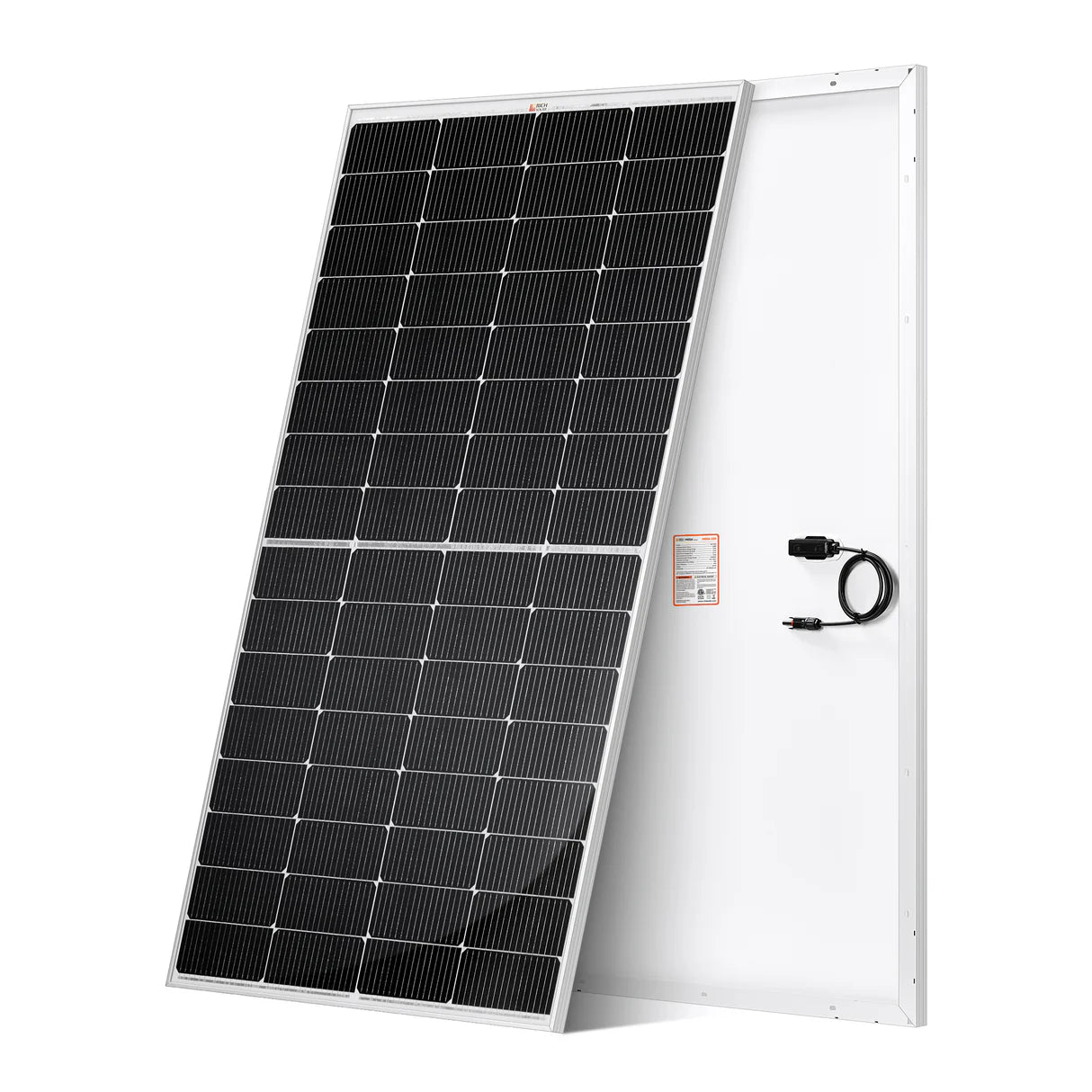

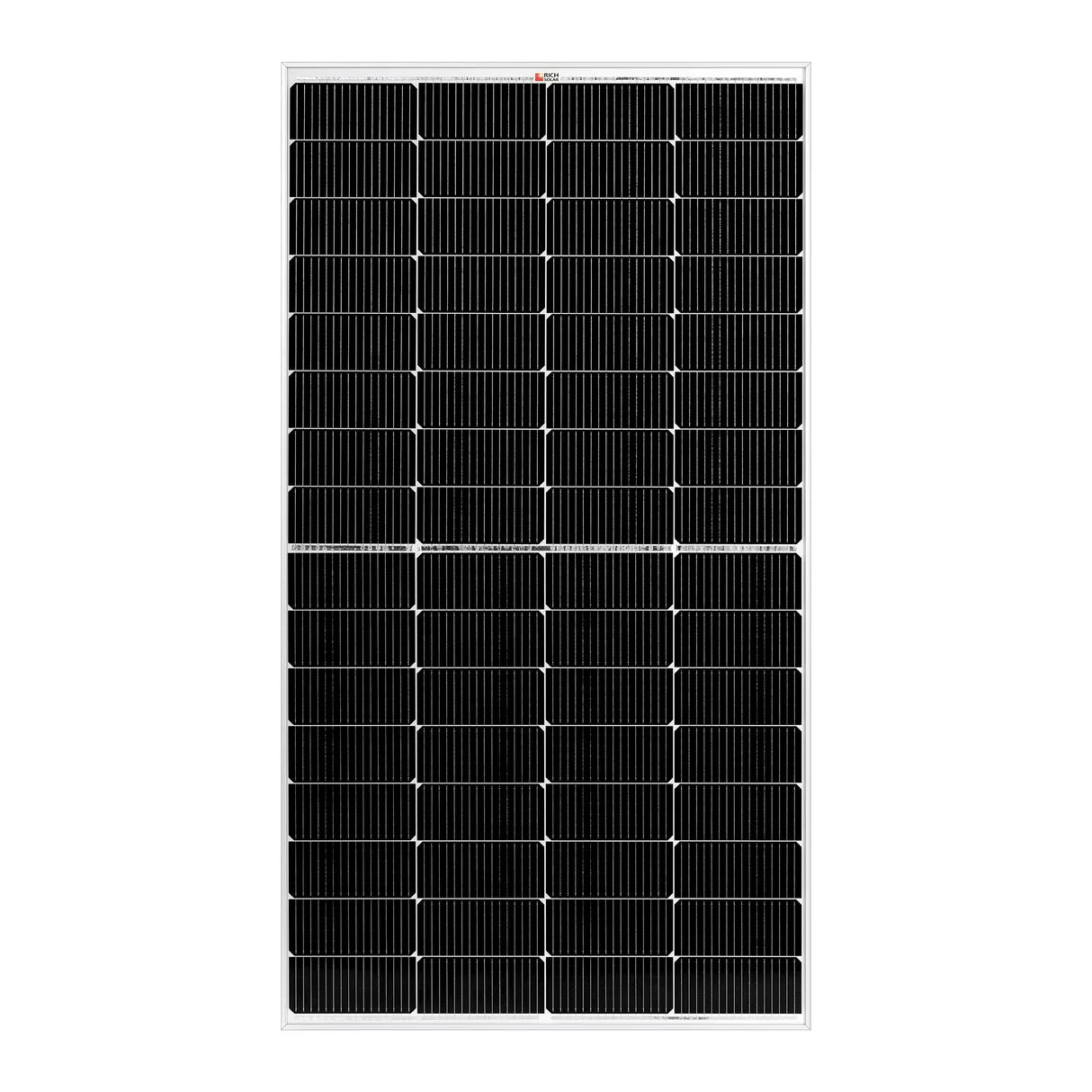

MEGA 220 | 220 Watt Solar Panel. Model RS-M220. 16-busbar monocrystalline technology. UL certified with 25-year power output warranty and 10-year workmanship warranty. Includes 3 ft pre-attached cables with IP67 connectors.
