108-Cell Half-Cut PERC Technology | All-Black 30 mm Frame | 20.4% Efficiency

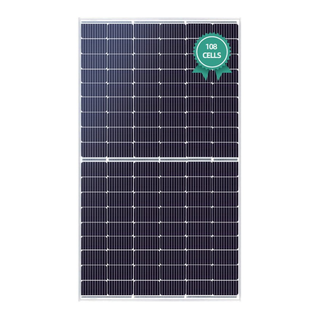

The Phono Solar TwinPlus 400W module combines sleek design with high performance for modern residential and commercial systems. Featuring advanced Mono-PERC half-cut cells and multi-busbar technology, it delivers higher power output, reduced electrical losses, and improved temperature performance — all in a low-profile all-black 30 mm frame for superior aesthetics.
With 400W output and 20.4% efficiency plus all-black design and robust construction, this panel delivers professional-grade performance with enhanced visual appeal for demanding applications.
Half-cut monocrystalline PERC cells reduce resistance and minimize power loss, while multi-busbar technology improves current flow and reliability.
108-cell configuration (6 × 18) delivers 400W output with 20.4% module efficiency for superior energy production.
30 mm anodized aluminum all-black frame and tempered glass guarantee long-term durability against snow, wind, and harsh environments.
Certified for 5400 Pa front load (snow) and 2400 Pa rear load (wind) for exceptional mechanical strength and reliability.
Positive power tolerance (0 ~ +5W) guarantees output performance, with excellent behavior under low-light and high-temperature conditions.
Optimized temperature coefficient (-0.35%/°C) ensures better performance in hot climates with wide operating temperature range.
Advanced half-cut monocrystalline PERC cells with multi-busbar technology reduce resistance, minimize power loss, and improve current flow for enhanced reliability and performance in partial shading conditions.
400W rated power with 20.4% module efficiency delivers superior energy production, featuring positive power tolerance (0 ~ +5W) for guaranteed output performance and excellent low-light behavior.
Robust construction with 30 mm anodized aluminum all-black frame and tempered glass, certified for 5400 Pa front load (snow) and 2400 Pa rear load (wind) for exceptional mechanical strength in harsh environments.
Optimized temperature coefficient (-0.35%/°C) for better performance in hot climates, with PID resistance and shading resilience for reliable residential and commercial installations.
12-year product warranty with 25-year linear performance warranty, meeting IEC 61215 and IEC 61730 standards for quality, safety, and reliability assurance.
| Model | PS400M6H-18/VHB |
| Rated Power | 400 W |
| Module Efficiency | 20.4% |
| Power Tolerance | 0 ~ +5 W |
| Temperature Coefficient | -0.35%/°C |
| Nominal Operating Temp | 45 ± 2 °C |
| Cell Type | Mono PERC Half-Cut |
| Cell Count | 108 (6 × 18) |
| Dimensions | 67.8 × 44.6 × 1.18 in |
| Weight | 45.8 lbs (22 kg) |
| Frame Material | Anodized Aluminum |
| Frame Color | All-Black |
| Backsheet Color | Black |
| Front Load (Snow) | 5400 Pa |
| Rear Load (Wind) | 2400 Pa |
| Junction Box | IP68 rated |
| Connector Type | MC4-Compatible |
| Cable Size | 4 mm² |
| Certifications | IEC 61215, IEC 61730 |
Perfect for residential installations with all-black frame and backsheet aesthetics, delivering high efficiency and reliable performance for home energy production.
Ideal for commercial and light-industrial solar arrays with premium aesthetics and robust construction for demanding commercial applications.
Excellent for off-grid or hybrid installations with high power output, durability, and professional-grade performance characteristics.
12-year product warranty with 25-year linear performance warranty ensures long-term reliability and performance assurance for peace of mind.
Meets IEC 61215 and IEC 61730 standards for quality, safety, and performance in various environmental conditions.
MC4-compatible connectors, 4 mm² cables, and comprehensive specifications ensure compatibility with professional solar installation systems.
Experience superior solar technology with Phono Solar TwinPlus 400W panels. Your professional solution for residential, commercial, and off-grid applications with half-cut PERC technology, all-black aesthetics, and comprehensive warranty protection.
Half-cut PERC technology, 400W high output, and all-black aesthetics — the professional solar solution for residential, commercial, and off-grid applications.
Model PS400M6H-18/VHB. Certified to IEC 61215 and IEC 61730 standards. 12-year product warranty with 25-year linear performance warranty. Professional installation recommended.
