555-585W Output | 144-Cell TOPCon Technology | Dual-Glass Construction | Up to 25% Bifacial Gain

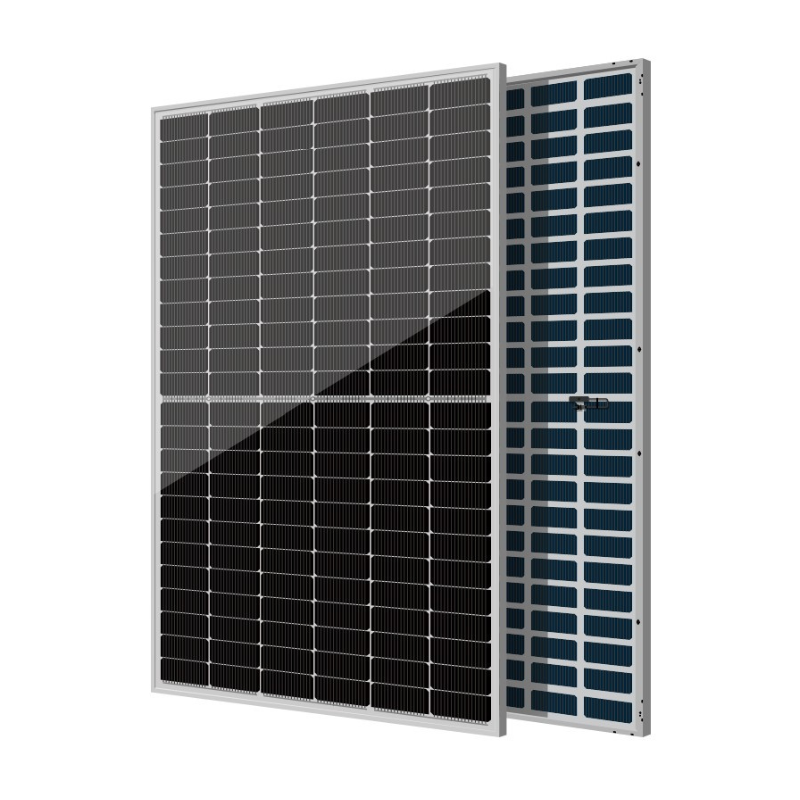

The ZXM7 Series N-Type Bifacial Modules deliver premium performance with advanced TOPCon technology and dual-glass construction. Featuring 555-585W power output and up to 25% additional bifacial gain, these panels combine high efficiency with exceptional durability for demanding commercial and utility-scale applications.
With 16BB & SMBB technology for reduced resistance and excellent low-light performance, these panels ensure reliable energy production across diverse environmental conditions and mounting configurations.
N-Type monocrystalline cells with TOPCon technology deliver excellent conversion efficiency (21.48%-22.65%) and long-term reliability with superior performance characteristics.
16BB & SMBB technology reduces busbar spacing, minimizes resistance, and improves overall power output and energy yield.
Generates up to 25% additional power from rear-side illumination, depending on mounting conditions and ground reflectivity (albedo) for maximum energy harvest.
Excellent low-light response produces more power in weak illumination conditions such as haze, cloudy weather, or early morning hours.
Superior anti-PID performance through strict cell and material quality control, resistant to harsh environments including salt mist, ammonia, sand, and high temperature/humidity.
TIER 1 Manufacturer with automated, independently certified production processes ensuring consistent quality and bankable global brand reliability.
Advanced N-Type monocrystalline cells with TOPCon technology deliver 21.48%-22.65% efficiency with 16BB & SMBB technology for reduced resistance and improved power output.
Generates up to 25% additional power from rear-side illumination with excellent low-light response for superior performance in haze, cloudy weather, and early morning conditions.
Dual 0.08" high-transmission, AR-coated, heat-strengthened glass with IP68 junction box and MC4-EVO2 connectors for extreme environmental durability.
Excellent resistance to Potential-Induced Degradation with robust construction resistant to salt mist, ammonia, sand, high temperature, and humidity for harsh environment applications.
Bankable global brand with automated, independently certified production processes ensuring consistent quality, reliability, and performance across all 555-585W models.
| Model Range | ZXM7-UHLDD144-555 to 585 |
| Rated Power (Pmax) | 555-585 W |
| Module Efficiency | 21.48%-22.65% |
| Rated Voltage (Vmpp) | 41.80-43.00 V |
| Rated Current (Impp) | 13.28-13.61 A |
| Open-Circuit Voltage (Voc) | 50.50-51.70 V |
| Short-Circuit Current (Isc) | 14.05-14.41 A |
| Cell Type | N-Type Monocrystalline |
| Cell Count | 144 (6 × 24) |
| Dimensions | 89.6 × 44.6 × 1.18 in |
| Weight | 69.4 ± 2.2 lbs |
| Glass Type | Dual 0.08" AR-Coated |
| Junction Box | IP68, 3 diodes |
| Connector | MC4-EVO2 |
| Max System Voltage | 1500 V DC |
| Temp Coefficient (Pmax) | -0.30%/°C |
| Temp Coefficient (Voc) | -0.25%/°C |
| Temp Coefficient (Isc) | +0.046%/°C |
| NMOT | 111.2°F ±3.6°F |
| Operating Range | -40°F to +185°F |
| Front/Rear Load | 5400/2400 Pa |
Perfect for large-scale ground-mount installations where bifacial gains can be maximized and high power density reduces balance-of-system costs.
Ideal for commercial buildings with reflective surfaces that enhance bifacial performance and maximize energy production per square foot.
Excellent for coastal, agricultural, and industrial environments with resistance to salt mist, ammonia, sand, and extreme temperatures.
Optimal for installations designed to maximize bifacial gains with elevated mounting and high-albedo surfaces.
555-585W power output with up to 25% bifacial gain delivers exceptional energy production and faster ROI for commercial projects.
Excellent response in weak illumination conditions extends daily generation hours and improves overall system performance.
5400 Pa front load and 2400 Pa rear load ratings ensure reliable performance in high-wind and heavy-snow environments.
Bankable manufacturer quality with automated production and independent certification ensures long-term performance and investment security.
Experience next-generation solar technology with ZXM7 Series 555-585W N-Type bifacial panels. Your professional solution for utility-scale, commercial, and industrial applications with TOPCon technology, dual-glass durability, and up to 25% additional bifacial energy gains.
N-Type TOPCon technology, 555-585W high output with up to 25% bifacial gain, and TIER 1 manufacturer quality — the premium commercial solar solution for maximum ROI.
Models ZXM7-UHLDD144-555 to 585. STC: 1000 W/m², 25°C, AM 1.5. Professional installation recommended for optimal bifacial performance.
