Tesla Powerwall 2 / Powerwall+ – Home & Light Commercial Energy Storage
Tesla Powerwall is a fully-integrated AC battery system for residential or light commercial use. Its rechargeable lithium-ion battery pack stores energy for solar self-consumption, time-based control, and backup power during grid outages. Powerwall’s electrical interface provides a simple connection to any home or building, while its revolutionary compact design achieves market-leading energy density and is easy to install — enabling owners to quickly realize the benefits of reliable, clean power.
Key Features
- Usable Energy: 13.5 kWh — stores excess solar or grid energy for later use.
- Backup & Solar Support: Provides scheduled energy and backup during outages, optimizing self-consumption.
- AC Output (Continuous): ~5 kW (standard Powerwall 2) up to ~7.6 kW (Powerwall+ enhanced) depending on model and conditions.
- Peak Power: Higher short-duration peak power for startup loads.
- Dimensions: ~45.3″ × 29.6″ × 5.75″ (1150 × 753 × 147 mm).
- Weight: ~251 lbs (114 kg) AC battery unit.
- Mounting: Floor or wall mount; indoor or outdoor rated.
- Operating Temp: –4°F to 122°F (–20°C to 50°C).
- Round-Trip Efficiency: ~90%.
- Warranty: 10 years.
Energy & Power
- Usable Energy Capacity: 13.5 kWh (typical performance)
- Continuous Output Power: up to 7.6 kW (with solar input)
- Continuous Output Power (grid/no solar): ~5.8 kW
- Peak Power Output (short duration): up to 22 kW (with solar) / 10 kW (no sun)
- Depth of Discharge (DoD): 100% — full usable capacity
- Round-Trip Efficiency: ~90% AC-to-AC
Dimensions & Weight
- Size (H × W × D): 62.8″ × 29.7″ × 6.3″ (1596 × 755 × 160 mm)
- Weight: ~310 lbs (140 kg) total system
Installation & Operation
- Mounting: Floor or wall mount (indoor/outdoor)
- Operating Temperature: –4°F to 122°F (–20°C to 50°C)
- Weather & Dust Resistance: Built for all-weather installations

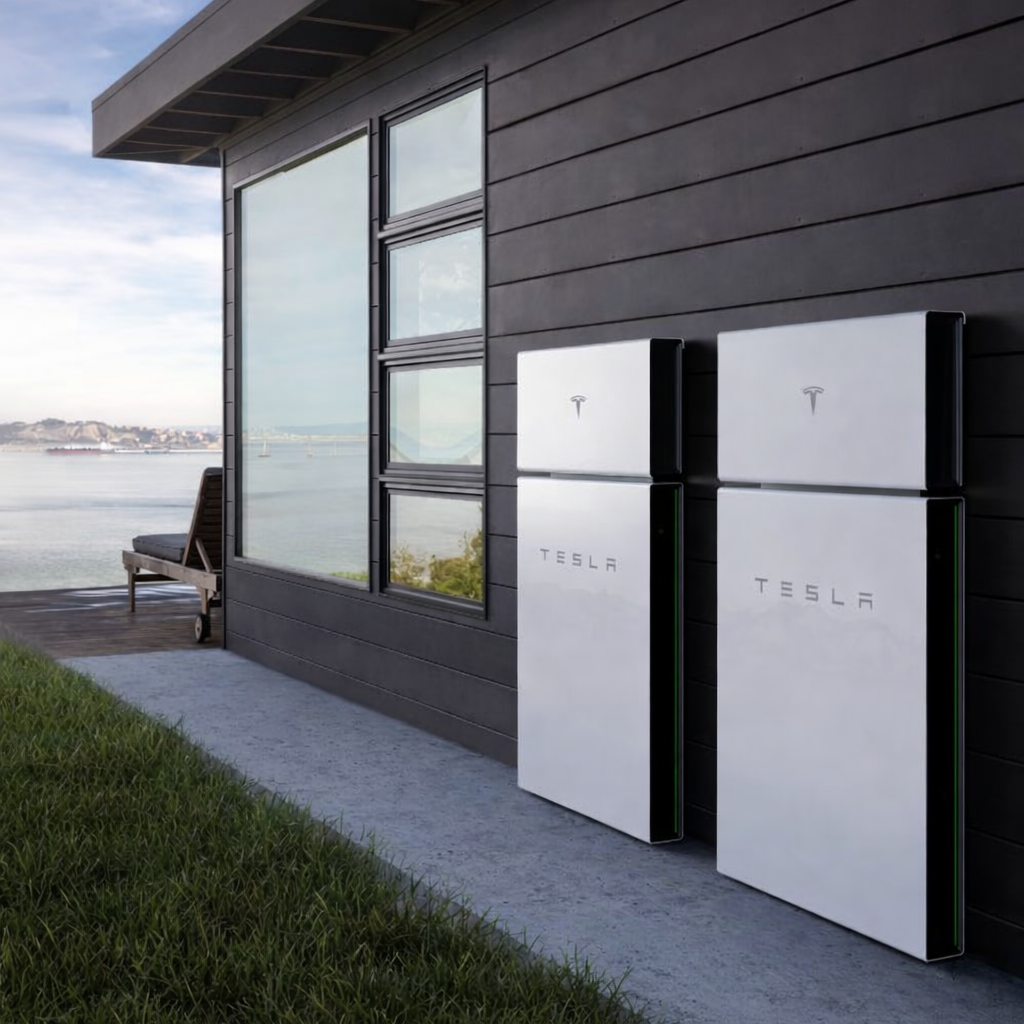

- Scalability: Stack multiple units for larger storage or higher output
Warranty
- Length: 10 years (with capacity retention guarantees)
- Retention: Minimum ~70% capacity after warranty period (varies by region)
Typical Uses
- Whole-home backup power
- Solar energy storage & self-consumption optimization
- Time-of-use load shifting
- Power during grid outages or demand charges
Why Tesla Powerwall?
Powerwall’s compact form and integrated AC system streamline installation and system design — combining battery, power conversion, and thermal management into one unit. It’s a powerful solution for reducing grid dependence, maximizing solar utilization, and ensuring backup power when you need it most.
