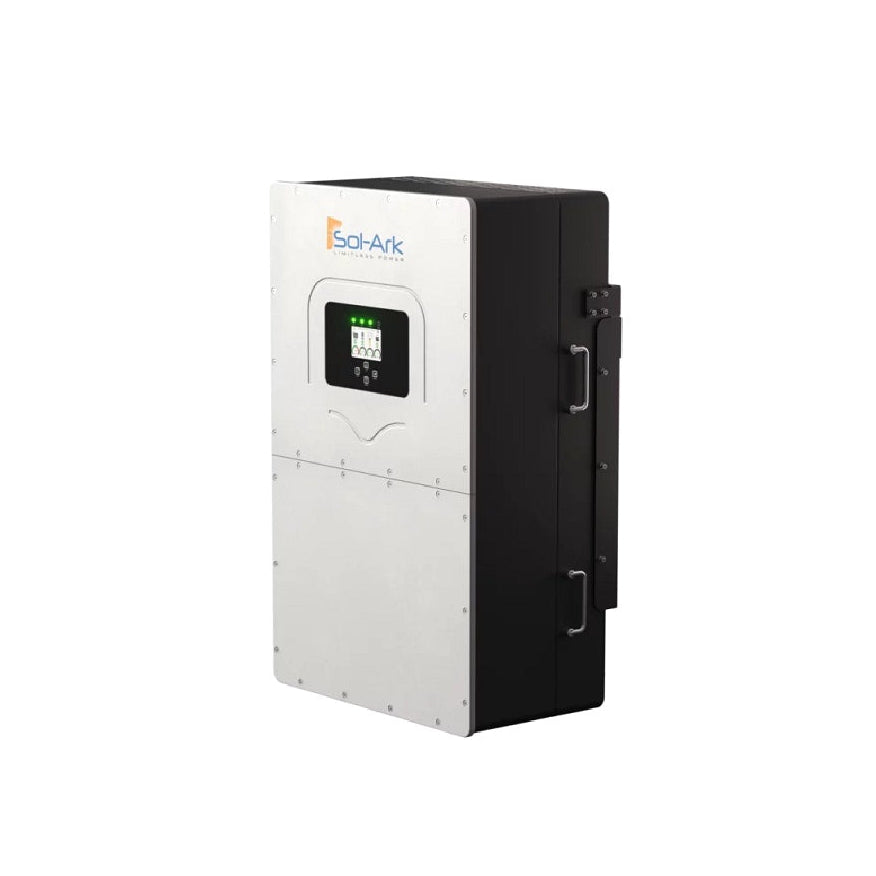

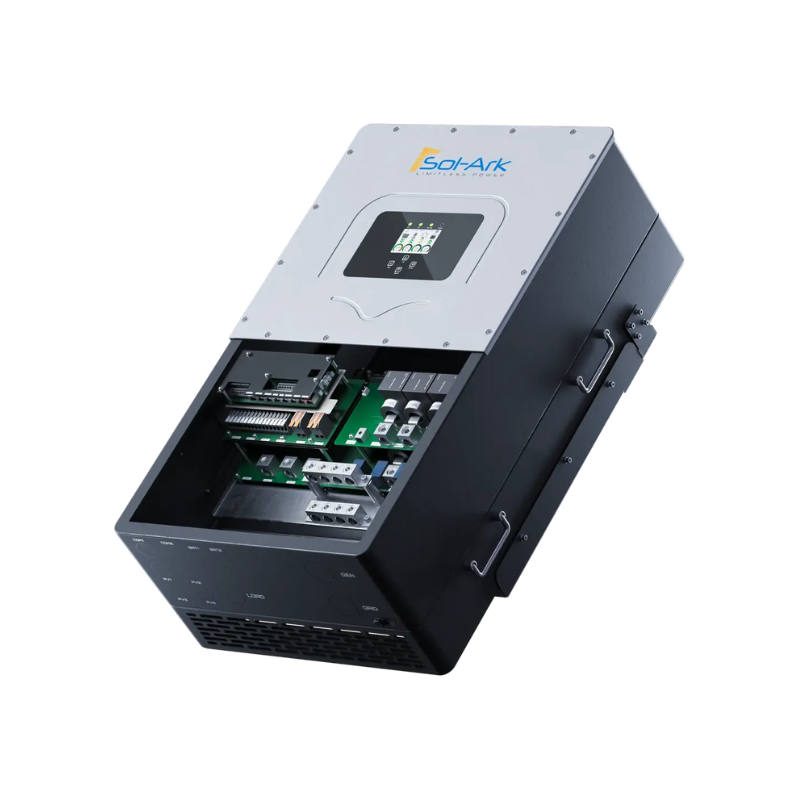

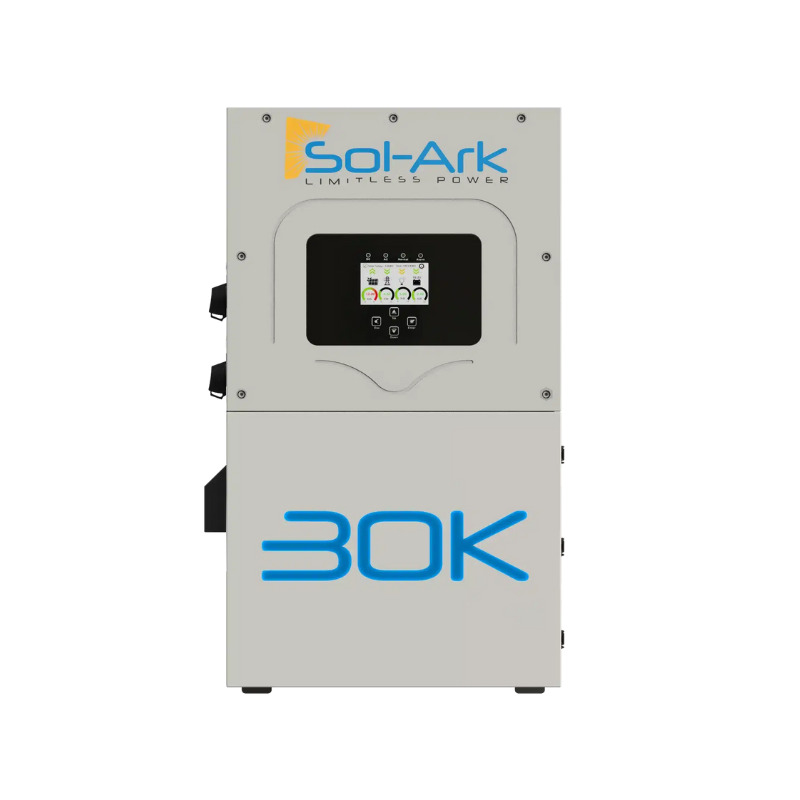

Sol-Ark 30K-3P-208V Commercial Hybrid Inverter

The Sol-Ark 30K-3P-208V is a powerful, flexible, and scalable commercial hybrid inverter designed specifically for light commercial and industrial applications. With built-in AC and DC coupling, native 120/208V three-phase output, and advanced energy management features, it simplifies solar-plus-storage installations while helping businesses reduce demand charges, improve resiliency, and meet sustainability goals.

This inverter supports seamless integration with both existing grid-tied solar PV systems and new arrays, eliminating the need for bulky step-down transformers in most light commercial buildings. Its modular architecture allows systems to scale from 30kW up to 300kW by paralleling up to 10 inverters, making it ideal for growing energy demands.

During grid outages, the system provides fast and reliable backup power with adjustable 20ms transfer time and up to 200A grid pass-through capability, ensuring business continuity for critical loads. With MySol-Ark monitoring, users can remotely monitor, commission, and manage energy usage, battery health, and system performance in real time.

Designed for durability and ease of installation, the unit is outdoor-rated (NEMA 3R), includes integrated safety protections, and comes with a standard 10-year warranty.

Key Features & Benefits

• AC & DC coupling for seamless integration with existing or new solar PV systems

• Native 120/208V three-phase output for light commercial installations

• Modular and scalable design: 30kW to 300kW (up to 10 inverters in parallel)

• Peak shaving and demand charge reduction capabilities

• Fast 20ms backup transfer time for uninterrupted operations

• Up to 200A grid pass-through for grid-tied and backup applications

• Integrated MPPT charge controllers for efficient DC coupling

• Remote monitoring, commissioning, and fleet management via MySol-Ark

• Outdoor-rated enclosure suitable for commercial environments

Technical Specifications

PV Input

• Max allowed PV power (STC): 39,000 W

• MPPT voltage range: 150–500 V

• Startup voltage: 180 V

• Max input voltage: 550 V

• Max operating input current per MPPT: 36 A

• Max short-circuit current per MPPT: 55 A

• Number of MPPTs: 4

• PV strings per MPPT: 2

• Max AC-coupled input power: 30,000 W

AC Output

• Nominal AC voltage (3-phase): 120/208 V

• Grid frequency: 50 / 60 Hz

• Max continuous real power: 30,000 W

• Max output current: 83.4 A

• Peak apparent power (10s, off-grid): 45,000 VA

• Max grid pass-through current (10 min): 200 A

• Continuous grid pass-through current: 180 A

• Power factor range: ±0.8 (adjustable)

• Backup transfer time: 20 ms (adjustable)

• CEC efficiency: 96.5%

• Max efficiency: 97.5%

Battery Input

• Battery chemistry: Lithium-ion

• Battery inputs: 2

• Battery terminal rating: 50 A per input

• Nominal DC voltage: ≥300 V

• Operating voltage range: 160–500 V

• Battery capacity range: 50–9,900 Ah

• Max charge/discharge current: 100 A total (50 A per input)

• Charge controller type: CC/CV, BMS-controlled

• Grid-to-battery charging efficiency: 96.0%

• BMS communication: 2 × CAN

• Automatic generator start: Integrated 2-wire start

General

• Dimensions (H × W × D): 35.2 × 20.8 × 11.6 inches

• Weight: 176 lb

• Enclosure rating: NEMA 3R (IP65)

• Operating temperature: -40°F to 140°F (derating above 113°F)

• Operating altitude: Up to 6,561 ft

• Noise level: <30 dB at 77°F

• Idle consumption (no load): 60 W

• Communications: Wi-Fi & Ethernet included

• Warranty: 10 years

Certifications & Safety

• UL 1741 (SB), IEEE 1547 / 1547a / 1547.1

• CSA C22.2 No. 107.1

• UL 1699B, CEC, SGIP, CSIP

• Integrated PV DC disconnect

• Integrated ground fault, arc fault, rapid shutdown, surge, and lightning protection
