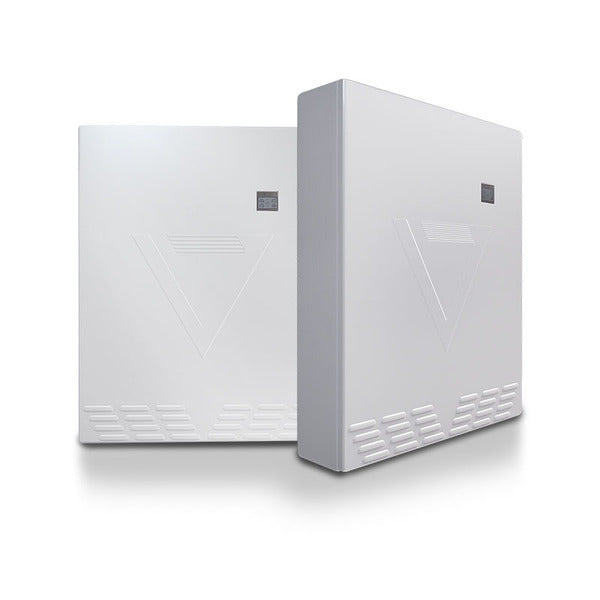

NeoVolta NV14 Hybrid Energy Storage System

14.4kWh Lithium Battery | 7.68kW Hybrid Inverter | Reliable Whole-Home Energy Storage

Overview

The NeoVolta NV14 Hybrid Energy Storage System is a fully integrated residential and commercial energy storage solution designed to store solar energy and deliver reliable backup power when it’s needed most. Combining a high-capacity lithium iron phosphate (LiFePO4) battery with a powerful hybrid inverter, the NV14 enables homeowners and businesses to maximize their solar energy usage both day and night.

With a total energy storage capacity of 14.4kWh and a 7.68kW inverter output, the NV14 can support essential loads during grid outages while allowing users to reduce reliance on utility power. Its hybrid design supports both AC and DC solar inputs, providing flexible installation options for new solar systems or retrofits.

Built with advanced LiFePO4 battery chemistry, the NV14 offers long cycle life, high safety standards, and excellent efficiency. The system is engineered for reliable operation across residential rooftops and commercial solar installations where dependable backup energy storage is essential.

Key Features

High-capacity hybrid solar battery system designed for reliable home backup and solar energy optimization.

• 14.4kWh Energy Storage – Store excess solar energy for use at night or during outages
• 7.68kW Hybrid Inverter – Supports high-power residential energy loads
• LiFePO4 Battery Technology – Safe, long-lasting lithium iron phosphate chemistry
• AC & DC Solar Integration – Compatible with both grid-tied and hybrid solar systems
• Backup Power Capability – Provides electricity during grid outages
• High Efficiency – Up to 97% battery charge efficiency

Applications

• Residential solar energy storage systems
• Whole-home backup power solutions
• Commercial solar installations
• Hybrid grid-tied solar systems
• Energy independence and peak load management

Specifications

Battery Capacity 14.4 kWh
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Nominal Voltage 48V
Nominal AC Output Power 7,680 W
Maximum AC Output 8,448 W (10 seconds)
AC Voltage 120/240V Split Phase or 208V
Frequency 60 Hz
Max DC PV Input 10,000 W
System Weight 560 lbs
Dimensions 50.5" H × 38" W × 10" D

View Full Specifications (PDF)

FAQs

Frequently Asked Questions

1. What is the NeoVolta NV14?
The NeoVolta NV14 is a hybrid home energy storage system designed for solar energy storage, backup power, and long-term energy independence.

2. How much energy storage does it provide?
It provides 14.4 kWh of usable battery storage capacity.

3. What is the power output?
The system delivers up to 7.68kW AC output at 120/240V split-phase power.

4. Can it power an entire home?
Yes, depending on your home’s energy usage, load management, and overall system configuration.

5. Can it work during power outages?
Yes. The system automatically provides backup power when grid outages occur.

6. Is this compatible with solar panels?
Yes. It is designed to integrate with residential solar systems for energy storage and backup applications.

7. Can it work without solar panels?
Yes. It can charge from the grid and still provide backup power during outages.

8. Is it suitable for off-grid systems?
Yes. It can support off-grid and hybrid solar applications with proper system sizing and electrical design.

9. Is the inverter built in?
Yes. The NV14 includes an integrated hybrid inverter system.

10. Can I install this indoors or outdoors?
Yes. It is designed for both indoor and outdoor installation depending on local code requirements.

11. Is it safe to install indoors?
Yes. The system includes built-in thermal management and multiple integrated safety protections.

12. What battery chemistry does it use?
It uses Lithium Iron Phosphate (LiFePO4) battery chemistry for strong safety performance and long cycle life.

13. Can the system be expanded later?
Yes. Expansion capability depends on system configuration and compatible components.

14. Does it support whole-home backup?
Yes. It is designed for essential load backup or whole-home backup depending on system sizing and energy demand.

15. Can it run large appliances like HVAC systems?
Yes, depending on startup surge requirements and total system load.

16. Can I monitor the system remotely?
Yes. The system supports remote monitoring and energy management capabilities.

17. What is the warranty?
NeoVolta systems typically include a 15-year warranty depending on installation and operating conditions.

18. Is professional installation recommended?
Yes. Professional installation is strongly recommended for proper commissioning, safety, and code compliance.

19. Who is this best for?
Ideal for homeowners seeking backup power, solar energy storage, lower electricity costs, and long-term energy independence.
