Product Description

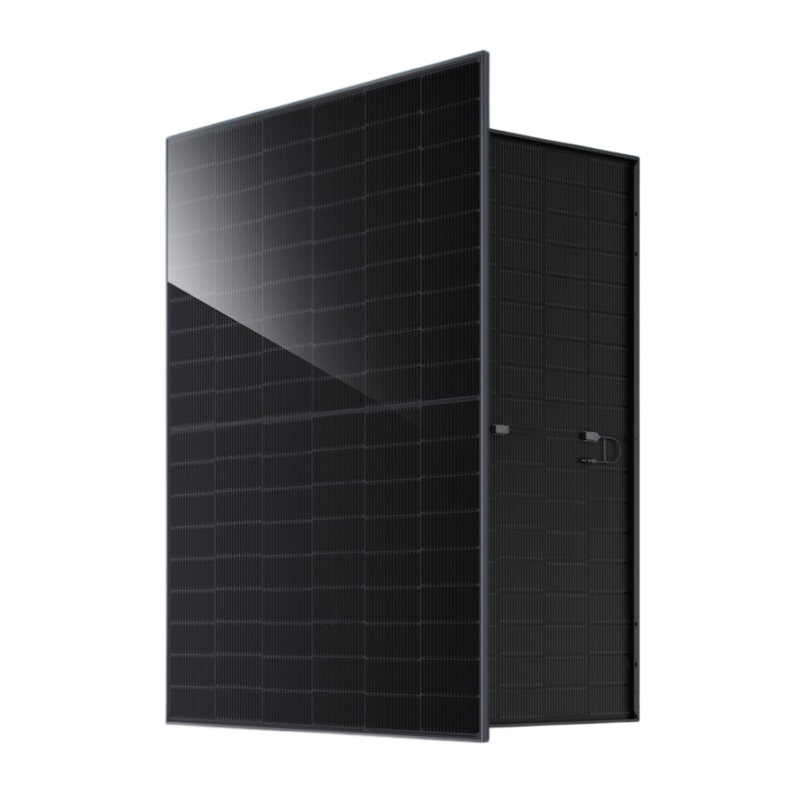

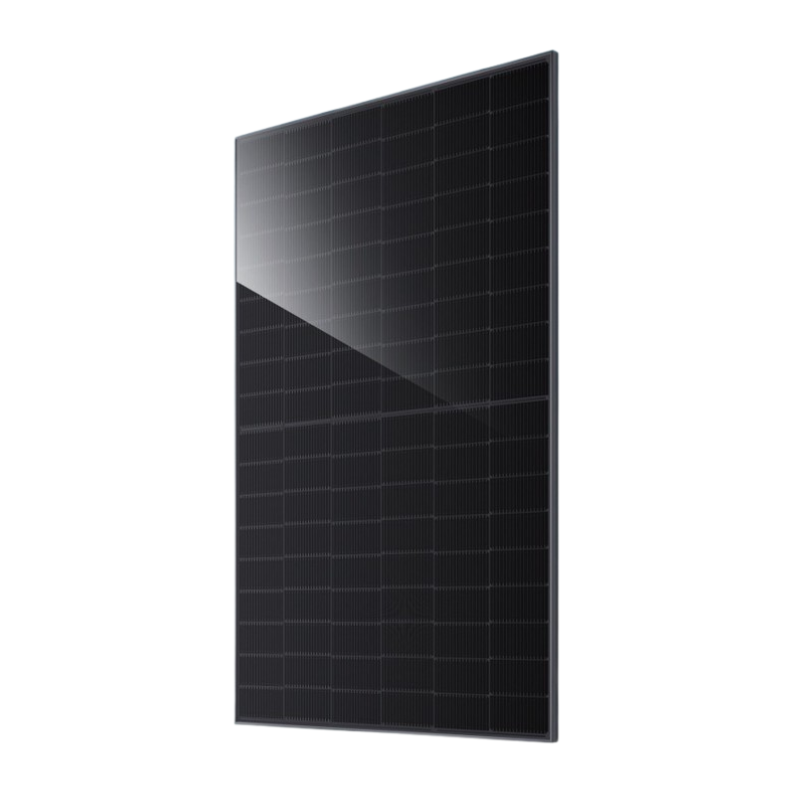

The JA Solar 450W Bifacial N-Type Double Glass Solar Panel offers premium performance and durability for residential and commercial rooftop installations. Built with advanced N-type cell technology, bifacial double-glass construction and a 25-year product warranty with 30-year power output warranty, this module is ideal for high-yield, long-lifespan solar systems.
Key Features
-
High-efficiency N-type solar cells featuring MBB (multi-busbar) technology for improved output and lower degradation.
-
Bifacial design (glass/glass) allows energy generation from both front and rear surfaces, increasing yield in reflective or ground-mount conditions.
-
Robust double-glass construction offers exceptional resistance to mechanical stress, weather conditions, micro-cracks, corrosion and PID.
-
High system voltage capability (up to 1500 V DC) and strong load ratings (e.g., up to ~5400 Pa snow, ~2400 Pa wind) for commercial & utility-scale compatibility.
-
A positive power tolerance (0/+5 W) ensures you receive at least the rated power output.
-
Stylish all-black design available (depending on variant) for aesthetic installations.
Specifications (typical 450 W class)
| Parameter | Value |
|---|---|
| Nominal Power (Pmax) | 450 W |
| Module Efficiency | 22.5% |
| Open Circuit Voltage (Voc) | 39.3 V |
| Short Circuit Current (Isc) | 14.48 A |
| Dimensions | 69.4 × 44.6 × 1.18 in |
| Weight | 48.5lb |
| Cells / Configuration | N-Type, bifacial glass/glass, ~108-144 cells depending on variant |
| Max System Voltage | 1500 V DC |
| Power Warranty | 30 years (linear) |
| Product Warranty | 25 years |
