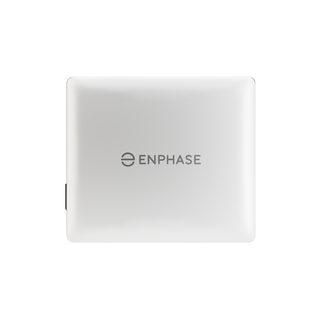

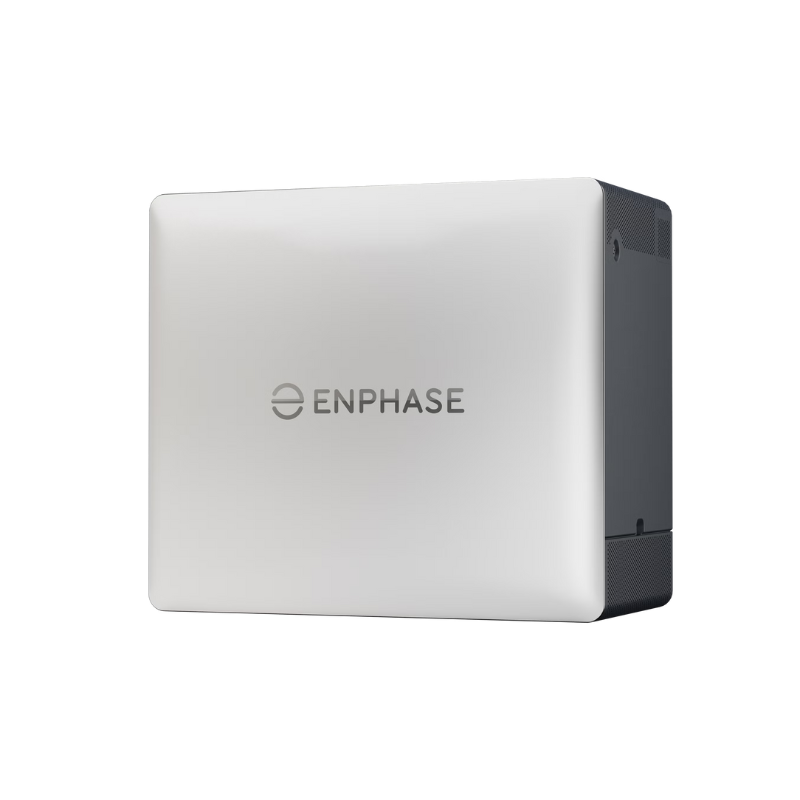

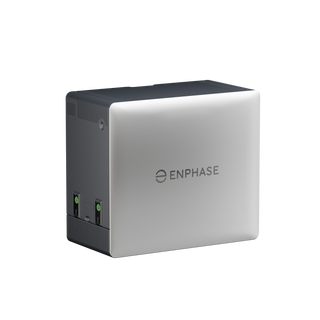

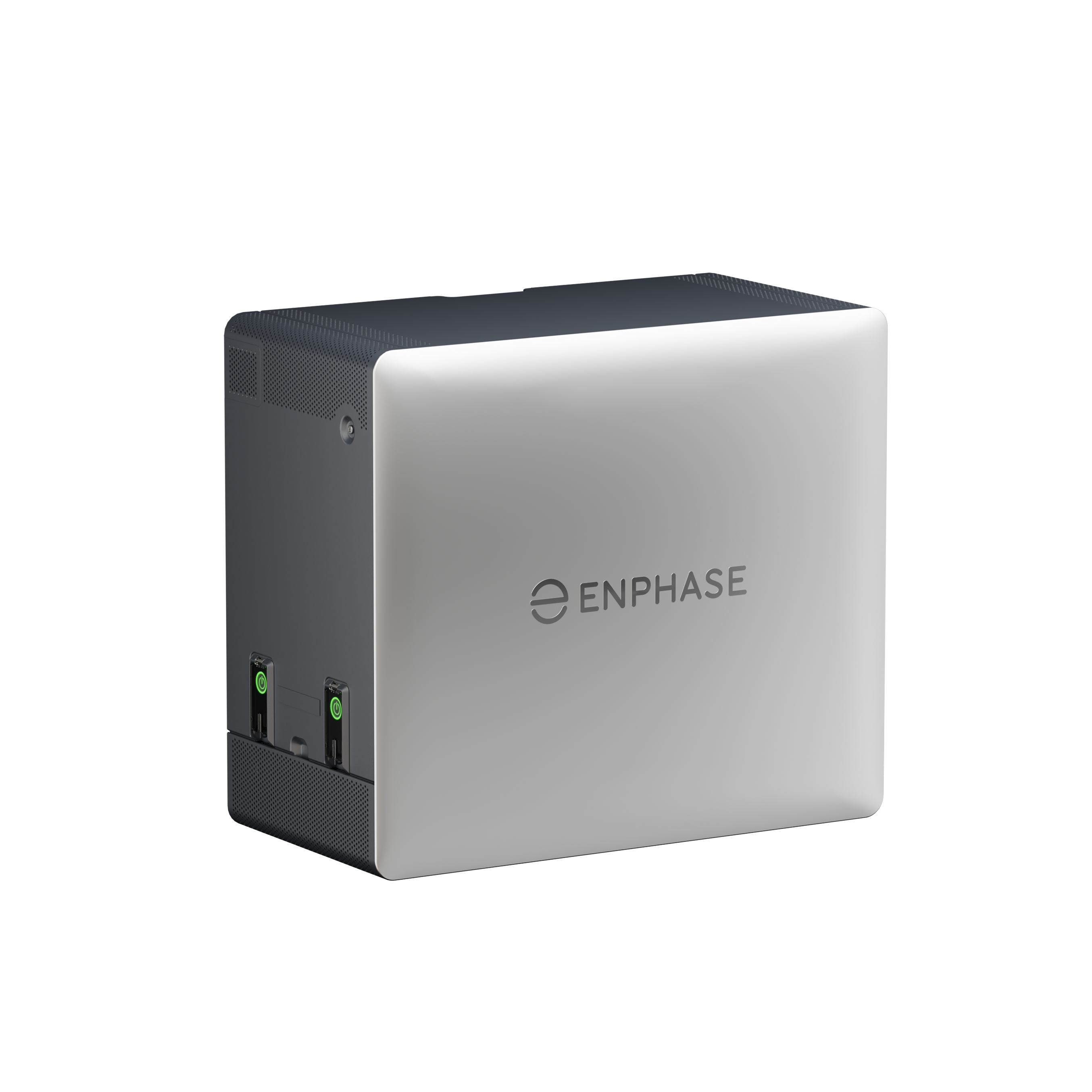

ENPHASE IQ BATTERY 10C

Reliable, Safe, and Powerful All-in-One AC-Coupled Storage

Overview

The Enphase IQ Battery 10C is a high-performance, all-in-one AC-coupled system designed to provide 10.0 kWh of usable capacity for residential backup and energy management. Built with four embedded IQ8B microinverters, it delivers a continuous power rating of 7.08 kVA, ensuring your essential loads stay powered during outages.

Its passive cooling system operates silently with no moving parts or fans, while the wired communication architecture ensures fast, reliable monitoring and software updates via the Enphase App.

Designed for maximum safety, the system uses Lithium Iron Phosphate (LFP) chemistry and meets stringent safety standards, including UL 9540A for thermal runaway protection.

Key Features

Premium LFP battery storage with 10.0 kWh usable capacity and 7.08 kVA continuous output.

• Four Embedded Microinverters – Grid-forming IQ8B units for high-reliability AC power
• LFP Chemistry – Maximum safety and long cycle life

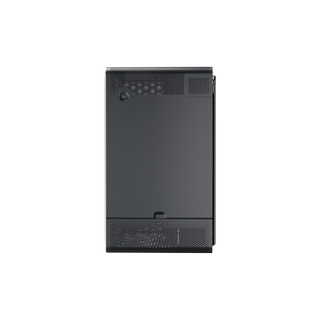

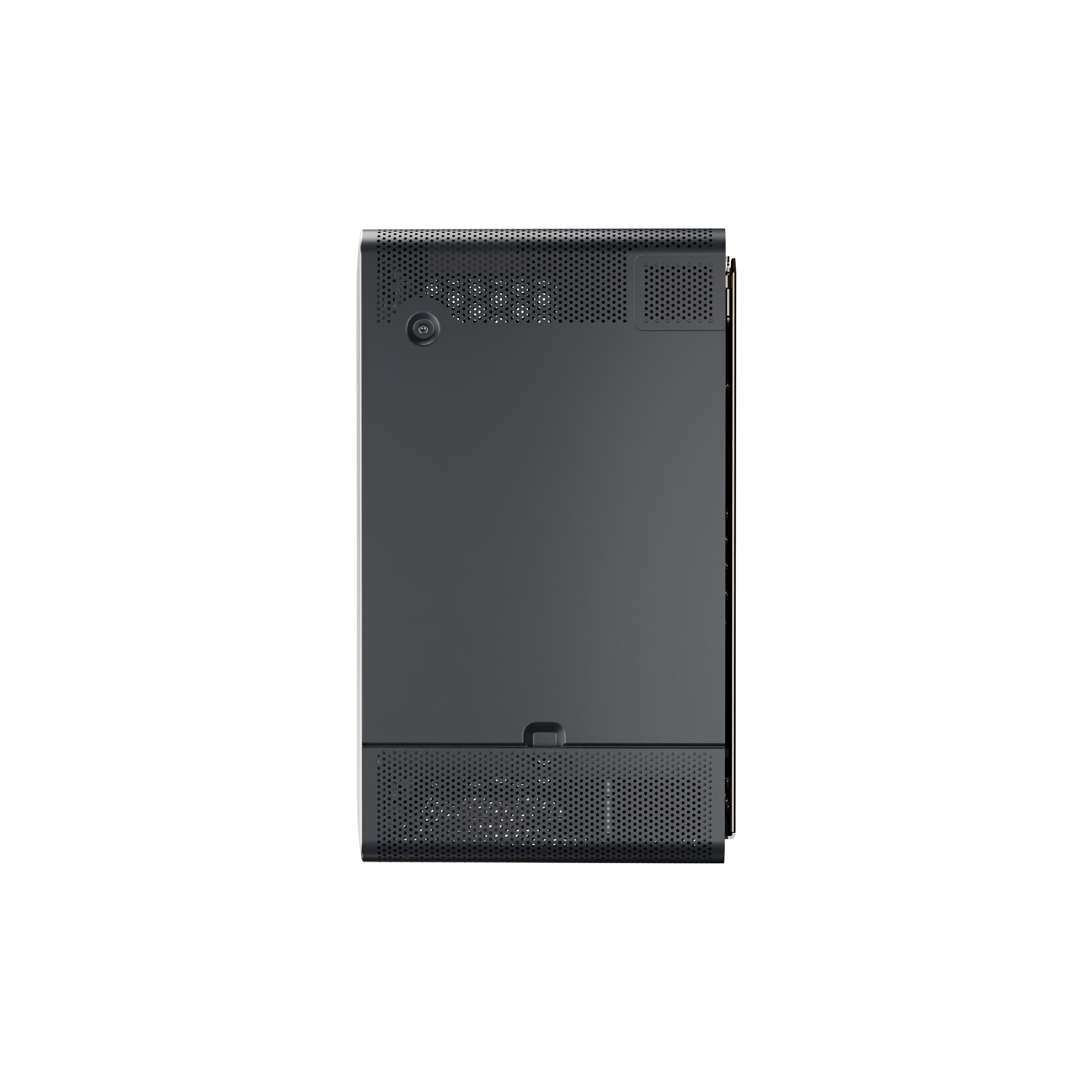

• Passive Cooling – Silent operation with no moving parts
• High Surge Capability – Supports heavy appliance startup loads
• 90% AC Efficiency – Optimized energy performance

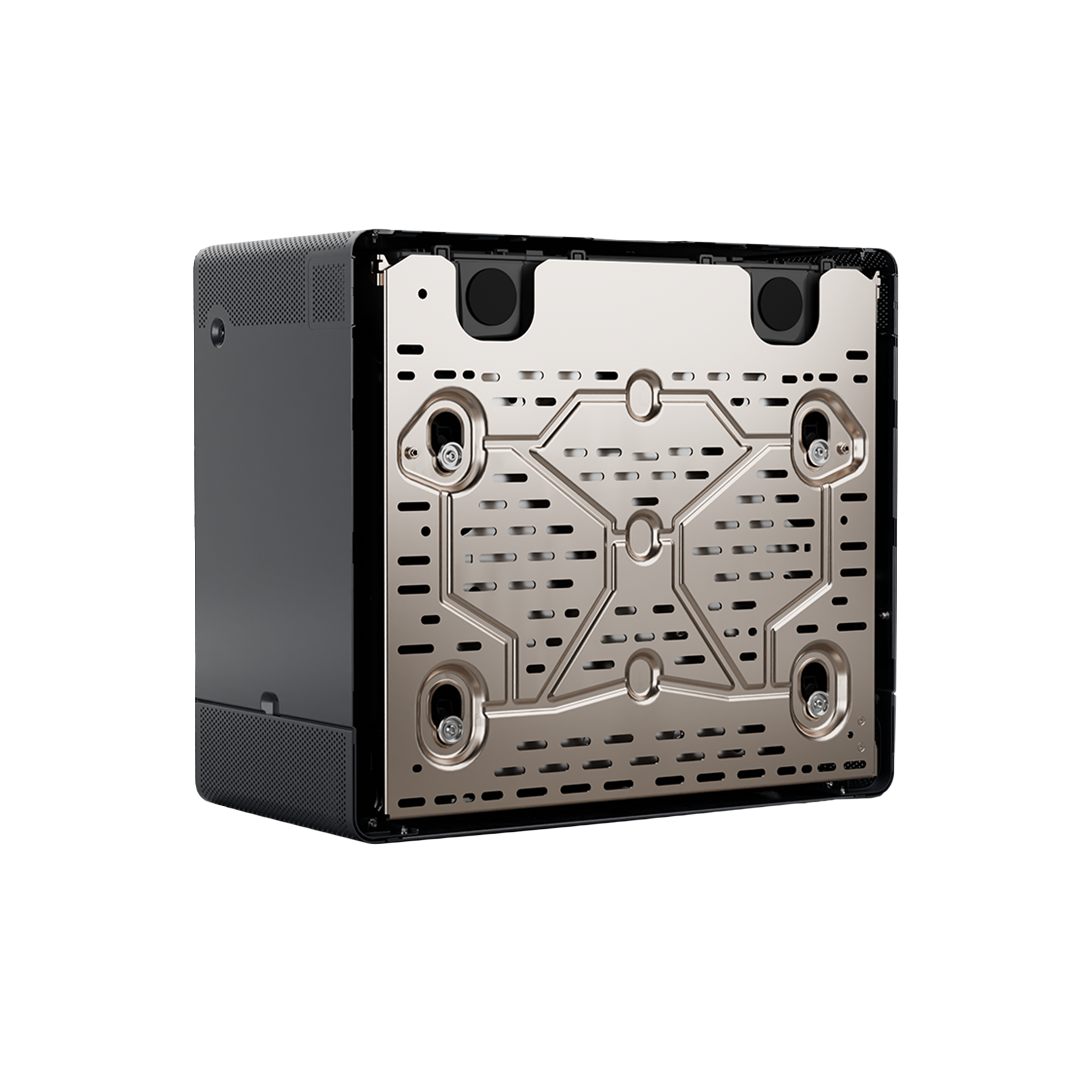

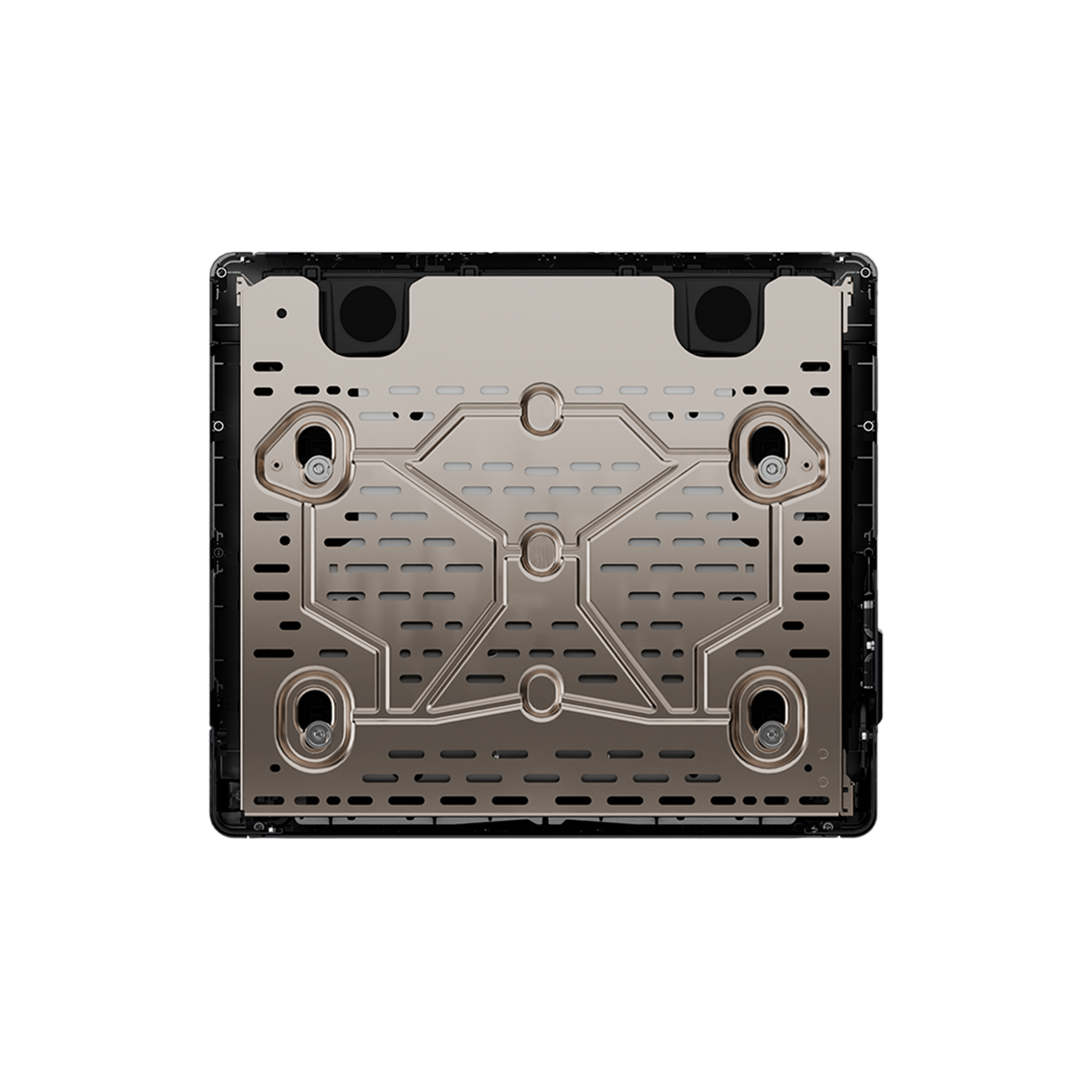

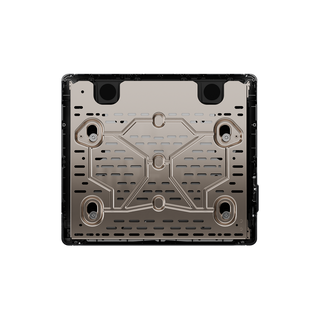

• Flexible Installation – Wall or pedestal mounting options

Specifications

Usable Capacity 10.0 kWh
Continuous Output Power 7.08 kVA
Peak Current 56 A (3 sec), 44.8 A (10 sec)
AC Round-Trip Efficiency 90%
Enclosure Rating NEMA 3R (Outdoor Rated)
Dimensions (H x W x D) 24.5 × 28 × 14.4 in
Weight 317 lb
Warranty 15 years or 6,000 cycles

View Full Data Sheet (PDF)

Enphase IQ Battery 10C | 10kWh Energy Storage | LFP Safety | Grid-Forming Microinverters | 15-Year Warranty

FAQs

Frequently Asked Questions

1. What makes the IQ Battery 10C different from the 5P?
The IQ Battery 10C delivers significantly higher power per unit. While the 5P is designed for modular, lighter loads, the 10C is built for whole-home backup and can handle larger appliances like HVAC systems.

2. How much usable energy does it provide?
It offers approximately 10 kWh of usable capacity, making it suitable for more demanding backup applications beyond essential loads.

3. What kind of power output does it deliver?
This is one of its key advantages:

• ~7.08 kW continuous output
• Capable of running heavy loads such as air conditioning units and pumps

4. Can one unit run an entire home?
It depends on total load, but a single unit can handle major appliances. Adding multiple units allows for full whole-home backup capability.

5. Is it still modular like other Enphase batteries?
Yes, it remains fully scalable. You can start with one unit and expand over time without redesigning the system.

6. Does it have a built-in inverter?
Yes, it is AC-coupled with integrated microinverters, eliminating the need for a separate battery inverter.

7. Is it only compatible with Enphase systems?
It is designed to work best within the Enphase microinverter ecosystem, where it integrates seamlessly for optimal performance.

8. What battery chemistry does it use?
It uses lithium iron phosphate (LFP), known for improved safety, longer lifespan, and higher thermal stability compared to standard lithium-ion batteries.

9. How long does the battery last?
It typically includes around a 15-year warranty and is rated for approximately 6,000 charge cycles, supporting long-term residential use.

10. Is installation complicated?
No, the system is designed for simplified installation with fewer components and streamlined integration, making it more installer-friendly than older battery systems.

11. Who is this battery best suited for?
• Homeowners seeking full backup capability
• Enphase users upgrading from smaller systems
• Installers wanting higher power per unit with fewer installations

12. What is the advantage compared to stacking smaller batteries?
Instead of installing multiple smaller units, the 10C provides:

• Higher power output per unit
• Cleaner system design
• Better support for heavy loads
