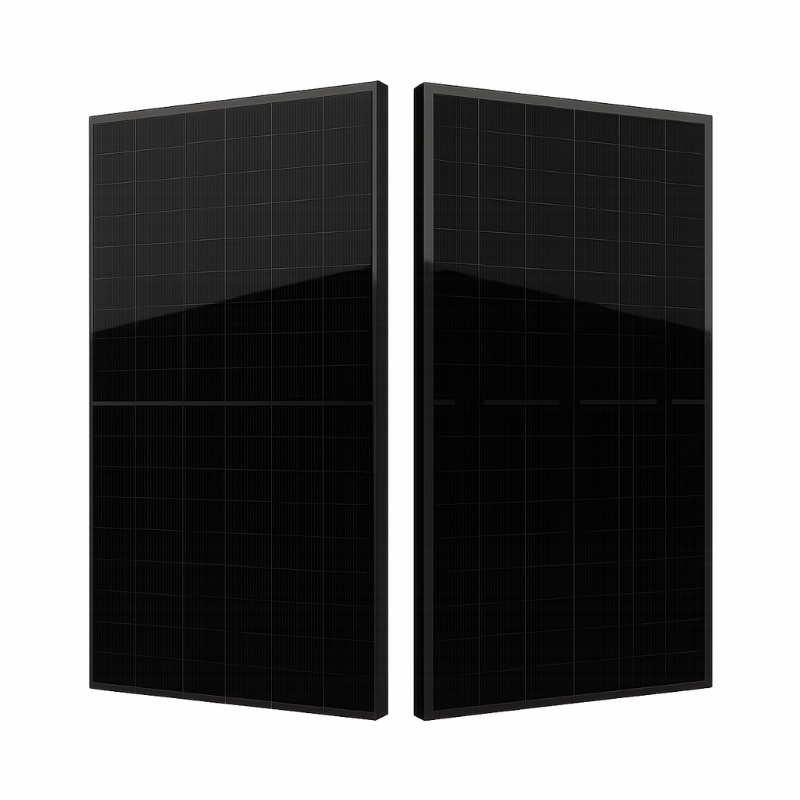

The Seraphim SRP-440-BTD-BG is a high-efficiency 440 W N-TOPCon bifacial solar module designed for residential and commercial solar installations. Built with advanced N-TOPCon cell technology and a durable bifacial glass-on-glass design, this panel maximizes energy capture from both the front and rear surfaces to boost total lifetime energy yield. With excellent low-light performance, high bifaciality, and industry-standard durability, it is an ideal choice for grid-tied systems, ground-mounted arrays, and large solar projects.
Each panel is engineered to withstand challenging environments and is backed by long-term product and performance warranties.
Key Features
- 440 W Rated Power per panel
- N-TOPCon cell technology for higher efficiency and better low-light performance
- Bifacial design for additional energy gain from reflected light
- Robust construction with anti-reflection coated glass and anodized aluminum frame
- High system voltage support (up to 1500 V DC)
- Excellent performance in diverse climates and conditions
- Compatible with MC4-style connectors and standard racking systems
- Ideal for residential, commercial, and utility solar projects
- 15-year product warranty, 30-year performance (varies by region & supplier)
Pallet Details (Common Wholesale Configuration)
- Panels per Pallet: 36 panels (standard pallet size for 440 W bifacial models)
- Total DC Power per Pallet: 15.84 kW (36 × 440 W)
- Estimated Net Weight per Panel: ~ 41–53 lbs (18.5–24 kg) (varies by datasheet source)
-
Estimated Total Panel Weight on Pallet:
- 36 × ~49 lbs ≈ 1,764 lbs (800 kg) (net panels only)
- With pallet & packaging: ~ 1,820–1,900 lbs (825–860 kg) (approximate freight estimate)
Actual shipped weight will vary depending on packaging, pallet type, and additional protection materials.
Specifications
- Model: SRP-440-BTD-BG
- Rated Power: 440 W
- Cell Technology: N-TOPCon bifacial
- Module Efficiency: ~22.5 % (typical)
- Open Circuit Voltage (Voc): ~39.3 V
- Max Power Voltage (Vmp): ~32.7 V
- Short Circuit Current (Isc): ~14.15 A
- Max Power Current (Imp): ~13.47 A
- Dimensions: ~ 67.8 × 44.7 × 1.1 inches
- Weight: ~ 41–53 lbs per panel (18.5–24 kg)
- Max System Voltage: 1500 V DC
- Frame: Anodized aluminum with bifacial glass
- Operating Temp Range: –40 °F to +185 °F
- Junction Box: IP68, 3 diodes
- Warranty: ~15 years product, ~30 years performance
